Key Features

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (350 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Overview

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6310 uses this solid foundation, plus additional inner support, to achieve an outstanding balance of power, durability and value, in addition to the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for 60-120cc Aerobatic models and most sport flying Giant Scale models.

*Torque and Transit @ 8.4V

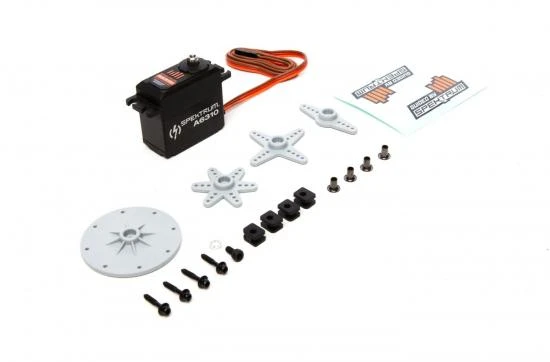

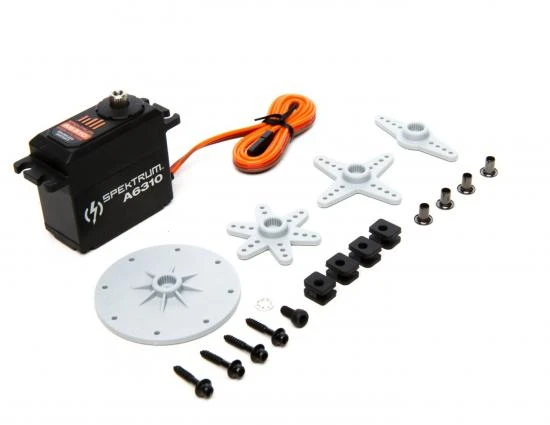

SpektrumT A6310 Ultra Torque High Speed Metal BL HV Servo Specfications:

• Application: : Giant Scale Aircraft / Jet Aircraft
• Bearing: : Dual
• Gear Type: : Metal
• Height: : 1.57″ (40.0mm)
• Length: : 1.49″ (37.8mm)
• Motor Type: : Brushless
• Programmable: : No
• Servo Operating Voltage: : 6.0 – 8.4V (HV)
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.12 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
• Spline Count: : 23 Teeth
• Torque: : 192.4 oz-in (13.8 kg-cm) @ 6.0V; 324.3 oz-in (23.3 kg-cm) @ 7.4V; 350.0 oz-in (25.2 kg-cm) @ 8.4V
• Weight: : 2.5 oz (71 g)
• Width: : 0.79″ (20.0mm)

Spec

• Brand: Spektrum
• Part No: SPMSA6310
• Barcode: 0605482831861
• Max Voltage: 7.4v+ (LiPo)
• Gear Material: Metal
• Fitment: Option Part
