Overview

The Smart Technology Powerstage Bundle is a one-box solution for large vehicles requiring top performance. Designed with the simplicity of Smart Technology, the bundle includes (2) 5000mAh 4S 100C Smart batteries, (1) S2100 Smart AC Charger and (2) charge adapters to make charging easy.

Spektrum™ Smart Technology Video Overview



SPEKTRUM SMART BATTERIES

You’ll never have to set charge preferences for a Spektrum Smart battery until you want to. When a Spektrum Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of that Smart LiPo battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences, such as charge rates, so that all you have to do to charge the pack every time is press the charger “Start” button. Smart technology takes care of the rest. Our Spektrum Smart 100C LiPos are ready to drop into your RC car or boat for better performance, power, and reliability. These battery packs are a great upgrade for those looking to get more punch and off the line power on nearly any setup.

Key Features:

• Integrated microchip stores unique parameters for each battery.
• Smart discharge allows batteries to automatically discharge to a safe voltage.
• Save time and hassle, while improving battery life.
• Powerful 100C continuous discharge rating to deliver high performance and longevity.
• Impact resistant ABS plastic hardcase.
• No soldering required, equipped with IC3 and IC5 Connectors that are compatible with EC3 and EC5.



SPEKTRUM SMART CHARGER

The Spektrum™ S2100 Smart Charger is the first dual-output AC Smart Charger to feature Spektrum Smart Charging technology. Small and portable, this 200W charger features the Spektrum IC3™ connector that delivers a robust connection that also reads vital battery content that relays to a bright LCD color display to clearly show unique information and log data about your Smart Battery such as how many charge cycles the pack has, and much more.

Key Features:

• High-visibility color LCD screen
• Simple touch-wheel interface.
• Intelligent software makes charging simple.
• Compact design with impressive output capacity.
• High-speed processor delivers amazing performance.
• Efficient, internal cooling system.
• Backward compatible with non-Smart batteries.



  CHARGE LEAD ADAPTERS

The Powerstage Bundle includes 2 IC3 Battery / IC5 Device charge lead adapters to make charging two batteries easier.



Spektrum SMART Powerstage Bundle – 8S (2 x 4S) Specfications:

• Display: 2.4” 320 × 240 IPS LCD
• Hard Case: Yes
• Input Voltage: 100 – 240V AC
• Product Height: 1.5″ (38 mm)
• Normal/Standard Charge Current: 0.1 – 12.0A
• Watt Hours: 72.0
• Battery Balance Connector: JST/XH
• Battery Temperature Monitoring: No
• Charge Protection Circuitry: Yes
• Number of Cells: 4 x 2
• Selectable Charge Rate: Yes
• Shape: Rectangular
• Battery Type: LiPo (3.7V per cell)
• Cooling Method: Fan
• PC Connectivity: Yes
• Safety Timer: Yes
• Maximum Continuous Discharge Current: 5W each port
• Product Width: 1.8″ (46 mm)
• Reverse Polarity Protection: Yes
• Thermal Protection: Yes
• Battery: Included
• Battery Voltage: 14.8V
• Connector Type: IC5
• Discharge: 0.1 – 3.0A x 2
• Maximum Charge Rate: 3C
• Product Length: 5.4″ (137 mm)
• Output Connector: IC5 (battery) IC3 adapters included to connect batteries to charger
• Peak Detection: Yes
• Product Weight: 1.09
• Cell Configuration: Stick
• Output: 14.8V x 2
• Amp Meter: Yes
• Application: RC vehicles requiring 8S LiPo power
• Maximum Charge Current: 12A x 2
• Over Current Protection: Yes
• Software Updates: Yes

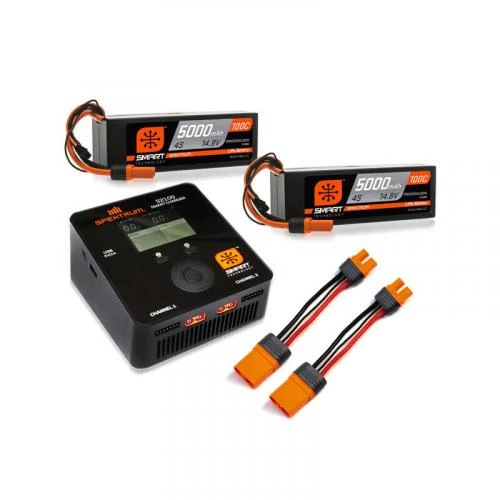

In The Box

• (2) 14.8V 5000mAh 4S 100C Smart LiPo, Hardcase, IC5
• (1) Spektrum Smart S2100 AC Charger, 2x100W
• (2) Spektrum IC3 Battery / IC5 Device, 4” Adapter

Spec

• Brand: Spektrum
• Part No: SPMXPS8HCI
• Barcode: 605482716229
• Input Voltage: 240V (UK mains)
• Voltage: 4S – 14.8v
• Case Type: Hard Case
• Included Connectors:
  • IC3
  • IC5
• Chemistry: LiPo
