Features

• Stylish stealth black and silver anodized aluminum case*
• Aluminum case provides great heat dissipation
• High Voltage HV compatible (7.4V/2S Max)*
• Improved torque and speed*

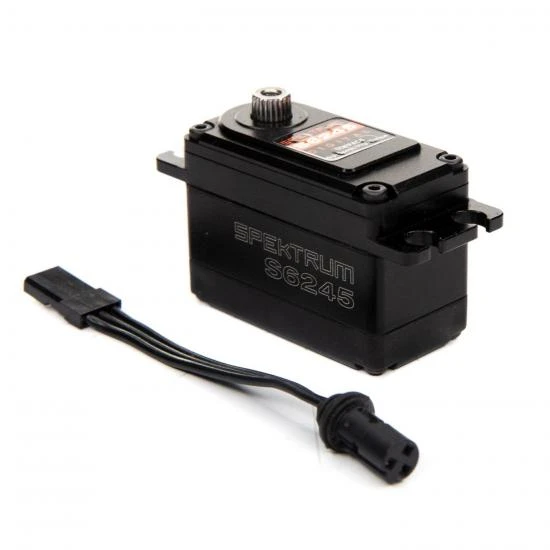

• Removable wire harness with different lengths available
• Improved gear design for added durability*
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Includes 2 inch extension for easy minimum wire installs
• Robust aluminum mounting tabs
• NMB dual main output shaft bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

*Compared to S6240 Racing Servo

Overview

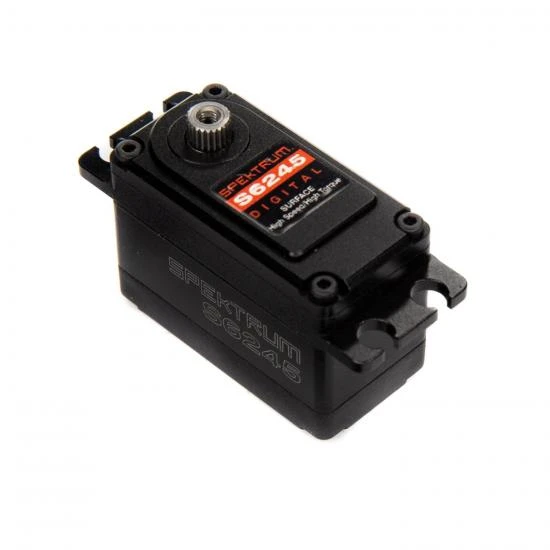

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.

S6245 High Speed/Torque Servo Specfications:

• Maximum Servo Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
• Application: Surface
• Max Servo Torque: 200-349 oz-in
• Product Weight: 2.2oz (62.37g)
• Connector Wire Length: 2.0 in (51mm)
• Bearing: Dual
• Product Width: 0.82 in (20.8mm)
• Bushing Or Bearing: Bearing
• Type: 6245 1/10
• Gear Type: Metal
• Maximum Servo Speed: 0.050-0.099 sec
• Programmable: No
• Servo Size Category: Standard
• Servo Operating Voltage: 6.0 – 7.4V (HV)
• Product Length: 1.61 in (41mm)
• Product Height: 1.18 in (30mm)

Spec

• Brand: Spektrum
• Part No: SPMSS6245
• Barcode: 605482690840
• Fitment: Option Part
