Overview

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-powerful/ultra-fast heli performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.

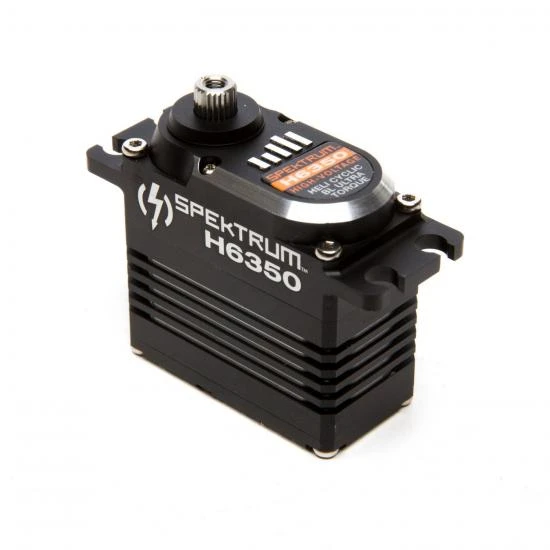

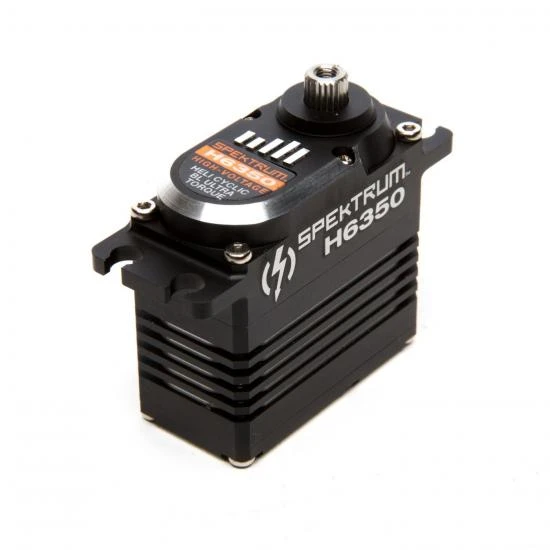

The Spektrum H6350 cyclic servo uses this solid foundation, to achieve an outstanding balance of performance, durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding swashplate control choice for 550- to 700-class electric and nitro helicopters.

H6350 Ultra Torque High Speed Heli Cyclic HV Servo Specfications:

• Application: : Heli Cyclic
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Universal
• Connector Wire Gauge: : 22 AWG
• Connector Wire Length: : 6 in and 12 in
• Deadband: : 2 – 3 µs
• Gear Material: : 2 Metal / 2 Plastic
• Gear Type: : Metal
• Height: : 1.49 in (37.8mm)
• Length: : 1.57 in (40mm)
• Motor Type: : Brushless
• Servo Operating Voltage: : 6.0 – 8.4V (HV)
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.062 sec/60 deg @ 8.4V
• Spline Count: : 23 Teeth
• Torque: : 416.4 oz-in (30.0 kg-cm) @ 8.4V
• Type: : Digital
• Weight: : 2.54 oz (72.0 g)
• Width: : 0.79 in (20mm)

Spec

• Brand: Spektrum
• Part No: SPMSH6350
• Barcode: 0605482128084
• Fitment: Option Part
