Key Features

• Standard size servo for 500 size Helicopter models and smaller
• 160oz Torque and .103 sec speed at 6.0v
• 4.8v-6.0v input voltage
• Long 10 inch (255mm) connector wire to reduce the need for extensions
• 23 Tooth spline
• Bearing supported output spline

Overview

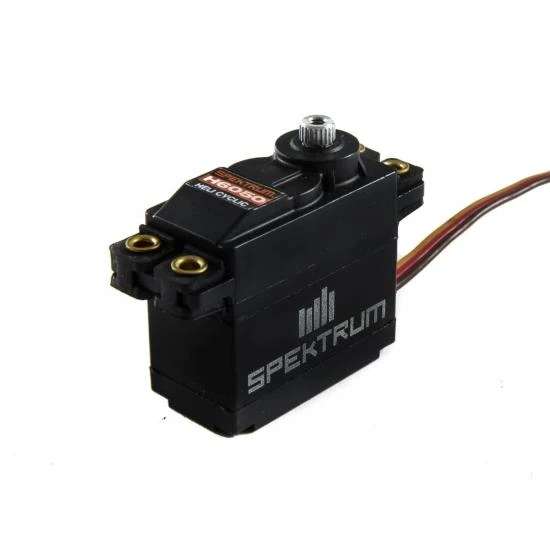

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.

Compatible Products Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo SPMSH6050 is compatible with BLH4925SC

H6050 High-Torque Mid-Speed Heli Cyclic Servo Specfications:

• Application: : Heli Cyclic
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Universal
• Connector Wire Gauge: : 22 AWG
• Connector Wire Length: : 10 in (255mm)
• Deadband: : Less than 1µs
• Gear Material: : Alloy Metal
• Gear Type: : Metal
• Height: : 1.51 in (38.3 mm)
• Length: : 1.57 in (40.0 mm)
• Motor Type: : Coreless
• Programmable: : No
• Rotation Range: : 120 deg
• Servo Operating Voltage: : 4.8 – 6.0V
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.103 sec/60 deg @ 6.0V at no load
• Spline Count: : 23 Teeth
• Torque: : 160 oz-in (11.5 kg-cm) @ 6.0V
• Type: : H6050 High-Torque Mid-Speed Heli Cyclic Servo
• Weight: : 2.2 oz (62g)
• Width: : 0.79 in (20.0 mm)

Spec

• Brand: Spektrum
• Part No: SPMSH6050
• Barcode: 605482187241
• Fitment: Option Part
