Overview

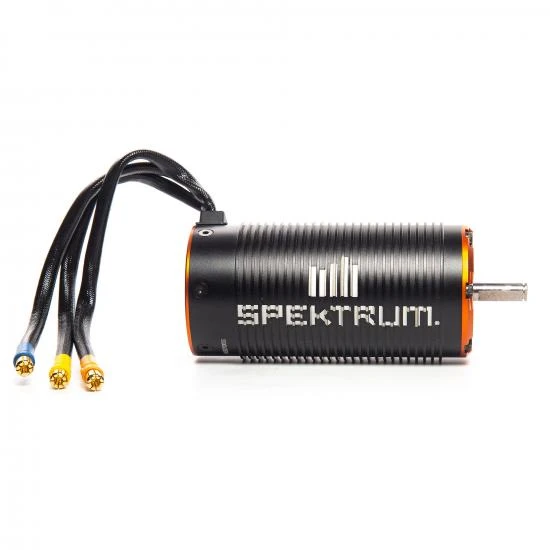

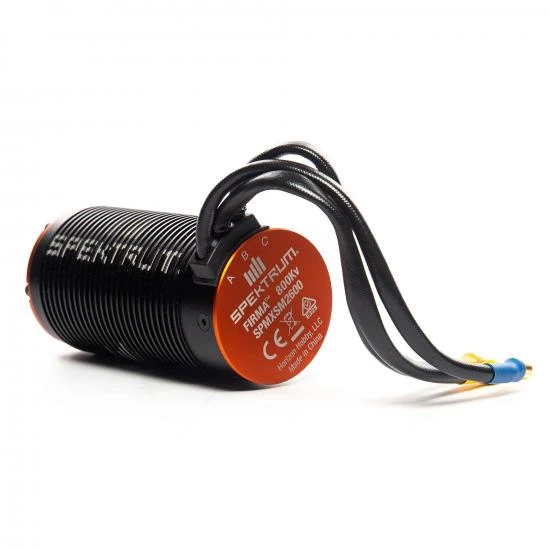

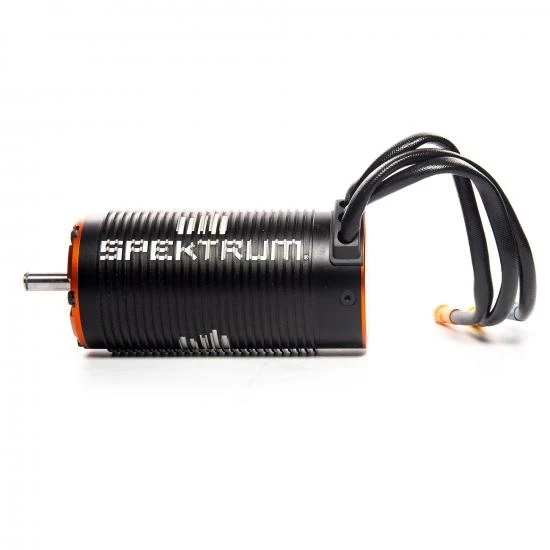

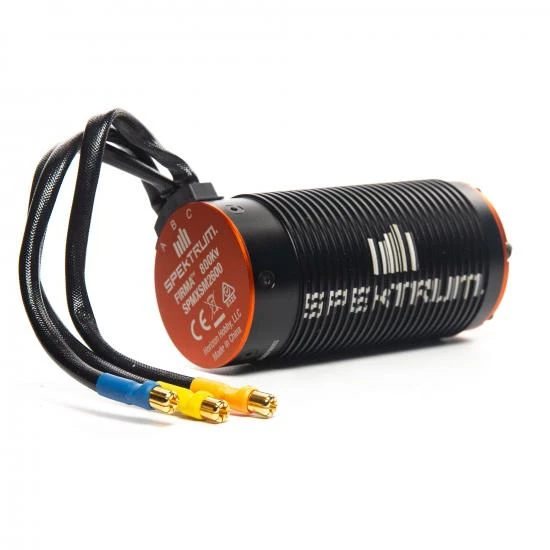

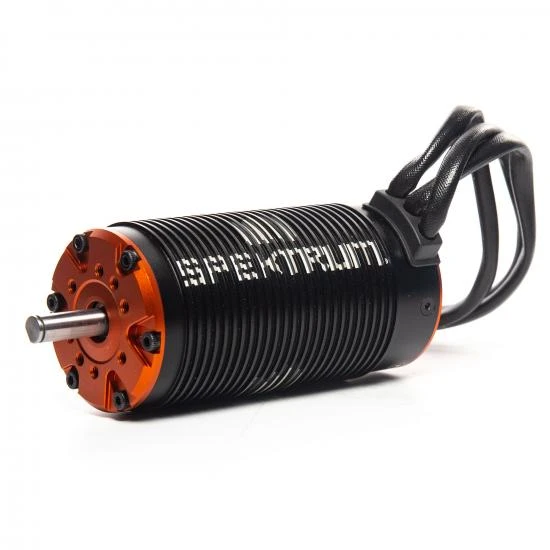

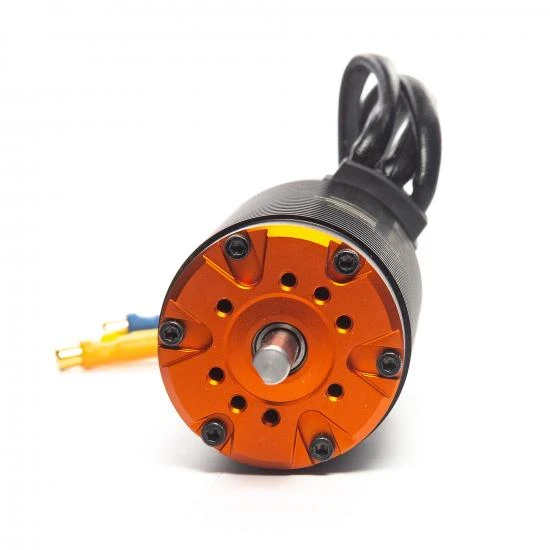

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

• Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
• High efficiency design
• 8S LiPo power capable
• High-quality 4-pole sintered rotor
• 6.5mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 8mm shaft
• Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Firma 800Kv 4-pole Brushless Motor Specfications:

• Adjustable Timing: No
• Input Voltage: 11.1 – 29.6V (3 – 8S)
• Recommended Speed Control: Spektrum Firma 160A Brushless Smart
• Motor Design: Inrunner
• RPM/Volt (Kv): 12,475 / 15V
• Shaft Length: 0.867″ (22 mm)
• Maximum Continuous Current: 110A
• Application: Arrma Roller Kits
• Number of Poles: 4
• Product Weight: 39.86oz (1130g)
• Resistance: .0049 ohms
• Shaft Diameter: 0.3″ (8 mm)
• Bushing Or Bearing: Bearing
• Connector Wire Length: 7.48″ (190 mm)
• Outer Diameter: 2.2″ (56 mm)
• Connector Type: 6.5mm Bullet
• Efficiency: 87%
• Motor Size: 5611
• Product Length: 4.4″ (112 mm)

In The Box

• Firma 800Kv 4-Pole Brushless Motor

Needed to Complete

• 160A ESC

Spec

• Brand: Spektrum
• Part No: SPMXSM2600
• Barcode: 605482719435
• Fitment: Option Part
