Overview

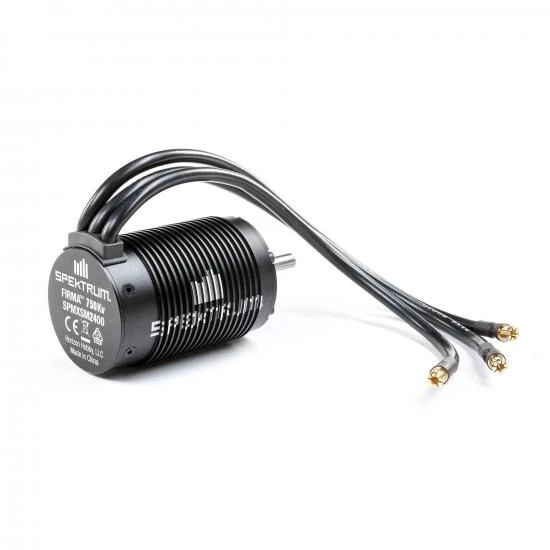

The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

• Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
• High efficiency design
• 4S LiPo power capable
• High-quality 4-pole sintered rotor
• 6.5mm gold plated bullet connectors
• High-quality construction with precision ball bearings and hardened steel 8mm shaft

Firma 5687-750Kv 4-pole Brushless Motor Specfications:

• Input Voltage: 12 25.2V
• RPM/Volt (Kv): 750Kv
• Motor Design: Inrunner
• Number of Poles: 4
• Motor Size: 5687
• Application: 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup
• Product Length: 3.43″ (87 mm)
• Efficiency: 87%
• Connector Type: 6.5mm Bullet
• Output: 3950W
• Product Weight: 2.08lbs (947g)
• Shaft Diameter: 0.314″ (8 mm)
• Maximum Continuous Current: 80A
• Motor Type: Brushless – Sensorless
• Outer Diameter: 2.2″ (56 mm)

In The Box

• Firma 5687 – 750Kv 4-Pole Brushless Motor

Needed to Complete

• 150A ESC

Spec

• Brand: Spektrum
• Part No: SPMXSM2400
• Barcode: 0605482728215
• Fitment: Option Part
• Fitment: Standard Part
