Take To The Trails With Confidence

The Spektrum Firma 3-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring fully rebuildable design, impressive torque and speed, and excellent efficiency.

Key Benefits

• 3-Pole Design: Industry standard design for max torque and efficiency
• Fully Rebuildable: Easy to replace parts for simple maintenance and increased motor lifespan
• Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance

Features

• Available in 35, 55, and 80 Turn configurations
• 540 can size – perfect upgrade for most 1/10th scale vehicles
• Adjustable timing for clockwise and counterclockwise motor rotation
• Pre-shaped curved face brushes – No break-in period required!
• Wires and 3.5mm bullets installed – No soldering required!
• Dual rubber sealed bearings
• Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings.

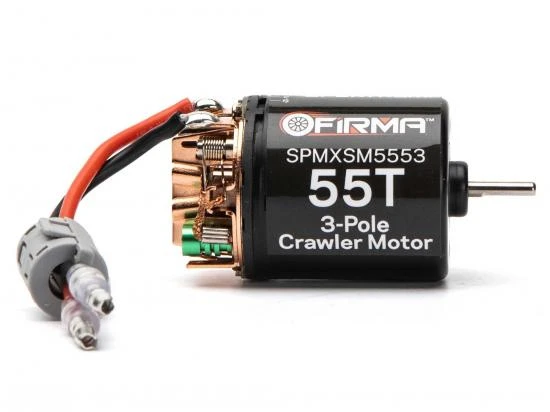

Spektrum Firma 55T Rebuildable 3-Pole Brushed Crawler Motor Specfications:

• Motor Type: Brushed
• Connector Type: 3.5mm Bullet
• Motor Size: 540-Size
• Product Length: 2.1″ (53 mm)
• Turns: 55T
• Application: 1/10 Scaler/Crawler
• Number of Poles: 3
• Product Weight: 169g (6.0 oz)
• Shaft Diameter: 0.125″ (3 mm)
• Water-Resistant: No
• Adjustable Timing: Yes
• Bushing Or Bearing: Bearing
• Forward: Yes
• Reverse: Yes
• Outer Diameter: 1.4″ (36 mm)

In The Box

• (1) Spektrum Firma 3–Pole Rebuildable Brushed 55 Turn Motor
• (1) Product Manual

Needed to Complete

• (1) Brushed ESC 40 Amp or Higher

Spec

• Brand: Spektrum
• Part No: SPMXSM5553
• Barcode: 0605482124925
• Fitment: Option Part
