Key Features

• Perfect upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore)
• High-quality 4-pole sintered rotors
• Includes 4mm gold plated bullet connectors
• Precision ball bearings and hardened steel 5mm shaft

Overview

Great choice for 1/10 Scale 4WD models. Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC.

Needed to Complete

• Electronic Speed Control such as the Firma 130 Smart ESC

What’s in the box?

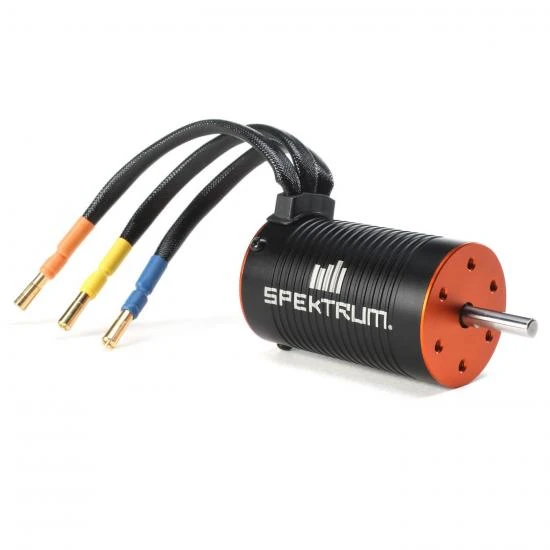

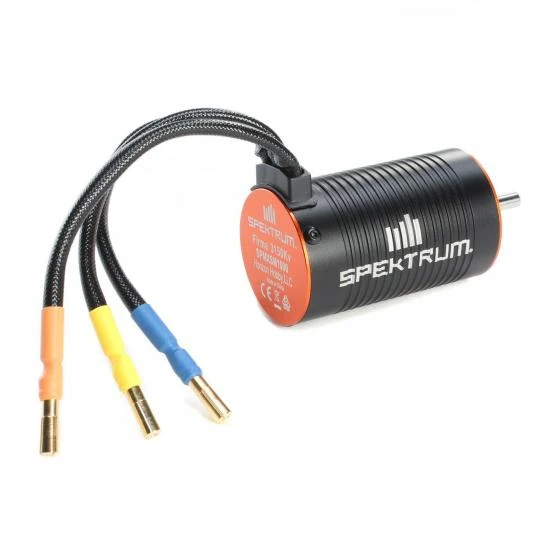

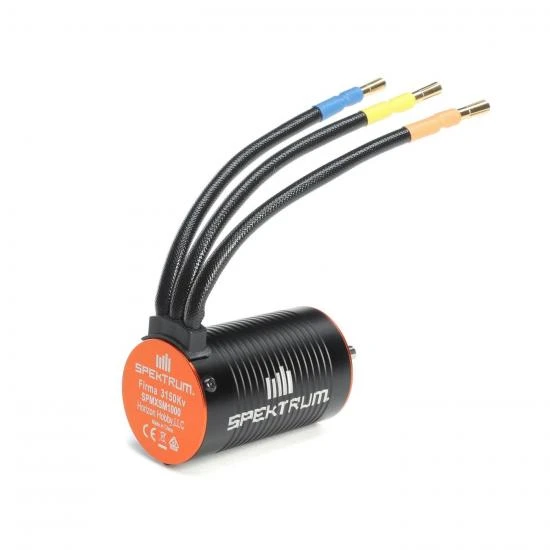

• Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors

Untitled Document Compatible Products Spektrum Firma Brushless Motor, 3150Kv: 4mm Bullet SPMXSM1000 is compatible with ASC90023, LOS03019T1, LOS03019T2, LOS03027T1, LOS03027T2

Firma 3150Kv Brushless Motor Specfications:

• Bearings or Bushings: : Bearings
• Cells: : 2-3S LiPo, 4-9 cell NiMH
• Connector Type: : 4mm Bullet,4mm Bullet
• Efficiency: : 90%
• Input Voltage: : 6-13.2V
• Maximum Continuous Current: : 100A
• Motor Type: : Brushless
• Number of Poles: : 4
• Output: : 1300W
• Overall Diameter: : 1.4″ (36mm)
• Overall Length: : 2.4″ (60mm)
• RPM/Volt (Kv): : 3150Kv
• Recommended Speed Control: : Spektrum Firma 130 Smart ESC
• Shaft Diameter: : 3/16″ (5mm)
• Size: : 3660
• Weight: : 8.7oz (247g)
• Wire Gauge: : 12 AWG

Spec

• Brand: Spektrum
• Part No: SPMXSM1000
• Barcode: 0605482428078
• Fitment: Option Part
• Fitment: Standard Part
