Overview

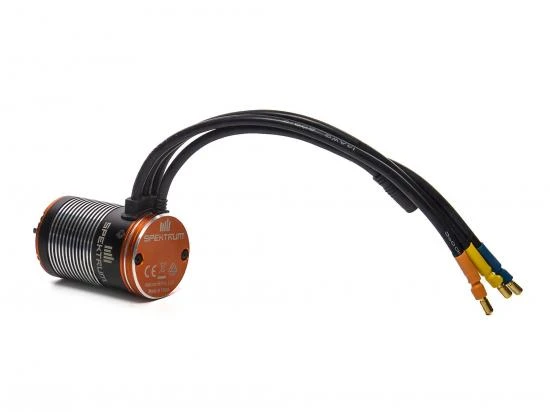

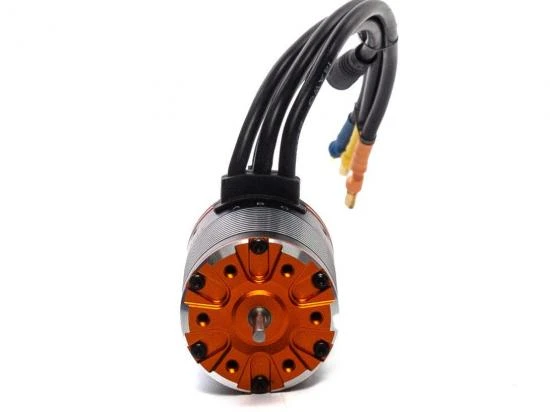

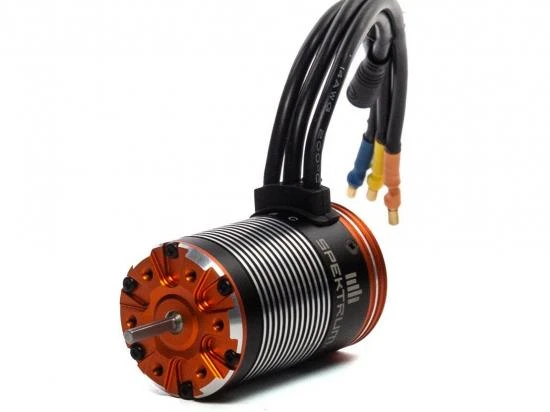

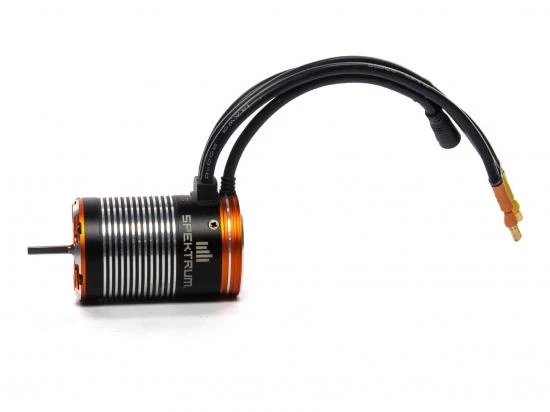

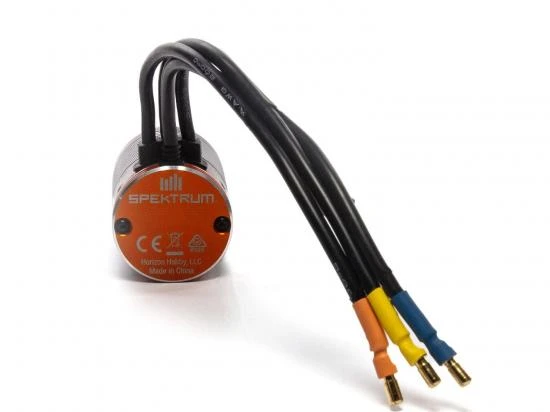

The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8″) output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The

Features

• Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8″ mm bore)
• Perfect for high speed off-road applications such as rock bouncers and rock racers
• High-quality 4-pole sintered rotor
• Polarity protection – magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors

• 3.5mm gold plated bullet connectors
• Waterproof sensor wire with locking plug and gasket
• High-quality construction with precision ball bearings and hardened steel 1/8″ shaft

Firma 2800Kv Brushless Sensored Crawler Motor Specfications:

• Connector Type: 3.5mm Bullet
• Motor Size: 540-2800Kv Brushless Sensored
• Product Length: 2.27″ (58 mm)
• Bushing Or Bearing: Bearing
• Forward: Yes
• Reverse: Yes
• Outer Diameter: 1.42″ (36 mm)
• Maximum Continuous Current: 50A
• Motor Type: Brushless – Sensored
• Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
• Number of Poles: 4
• Shaft Diameter: 0.125″ (3 mm)
• Water-Resistant: Yes
• Input Voltage: 7.4 – 11.1V
• Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
• RPM/Volt (Kv): 2800Kv

Spec

• Brand: Spektrum
• Part No: SPMXSM3002
• Barcode: 0605482725641
• Fitment: Option Part
