Next-level Slow Speed Control

The Spektrum Firma 5-Pole Rebuildable Brushed Motors offer an impressive low-cost upgrade for brushed esc equipped 1/10th scale Crawlers and Scalers. Featuring a fully rebuildable design, impressive low-end torque and control, and excellent efficiency.

Key Benefits

• 5–Pole design Maximizes smooth throttle control at low speeds and efficiency
• Fully Rebuildable Easy to replace parts for simple maintenance and increased motor lifespan
• Adjustable Timing: 0 to 20 degree timing adjustments for expert level tuning and increased performance

Features

• Available in 16T and 20T configurations
• 5-pole design provides half the speed of 3-pole design counterparts
• Adjustable timing for clockwise and counterclockwise motor rotation
• 540 can size – perfect upgrade for most 1/10th scale
• Pre-shaped curved face brushes – No break-in period required!
• Wires and 3.5mm bullets installed – No soldering required!
• Dual rubber sealed bearings
• Fully rebuildable with an easily accessible commutator and replaceable brushes, springs, and bearings
• 2S LiPo/6Cell NiMH recommended battery

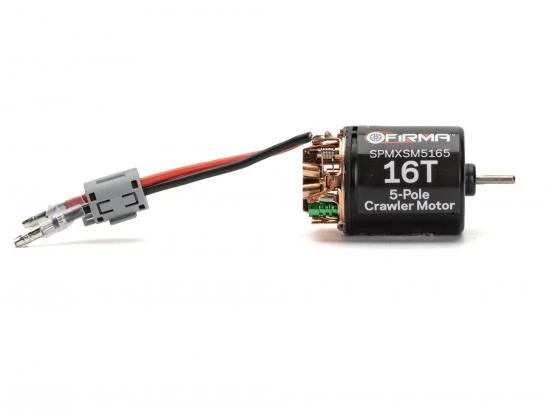

Spektrum Firma 16T Rebuildable 5-Pole Brushed Crawler Motor Specfications:

• Outer Diameter: 1.4″ (36 mm)
• Bushing Or Bearing: Bearing
• Forward: Yes
• Connector Type: 3.5mm Bullet
• Motor Size: 540-Size Brushed
• Product Length: 2.1″ (53 mm)
• Product Weight: 169g (6.0 oz)
• Shaft Diameter: 0.125″ (3 mm)
• Water-Resistant: No
• Application: 1/10 Scaler/Crawler
• Number of Poles: 5
• Motor Type: Brushed
• Reverse: Yes
• Adjustable Timing: Yes
• Turns: 16T

In The Box

• (1) Spektrum Firma 5–Pole Rebuildable Brushed 16 Turn Motor
• (1) Product Manual

Needed to Complete

• (1) Brushed ESC 40 Amp or Higher

Spec

• Brand: Spektrum
• Part No: SPMXSM5165
• Barcode: 0605482124864
• Fitment: Option Part
