Product Features

• Review, adjust and save Spektrum Smart ESC parameters
• Connect (via USB) to a PC to update Smart ESC firmware and adjust parameters via Spektrum SmartLink PC app
• Check a LiPo battery’s cell balance

Product Overview

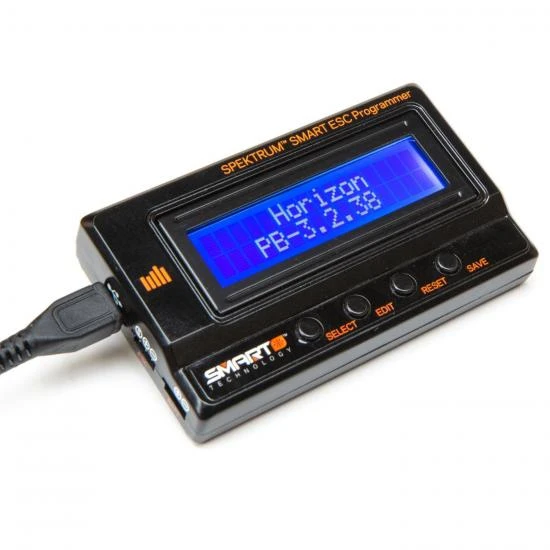

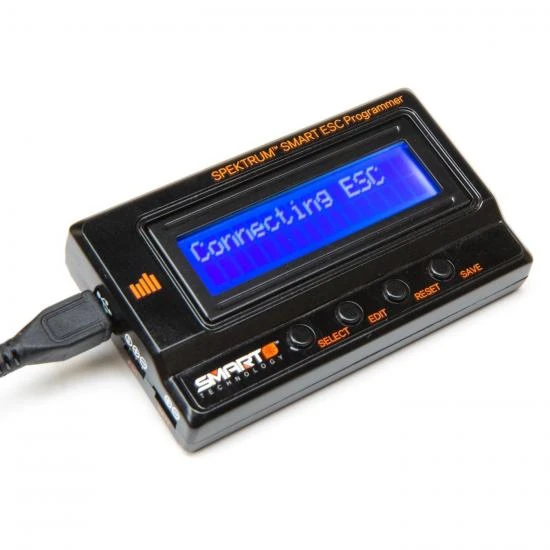

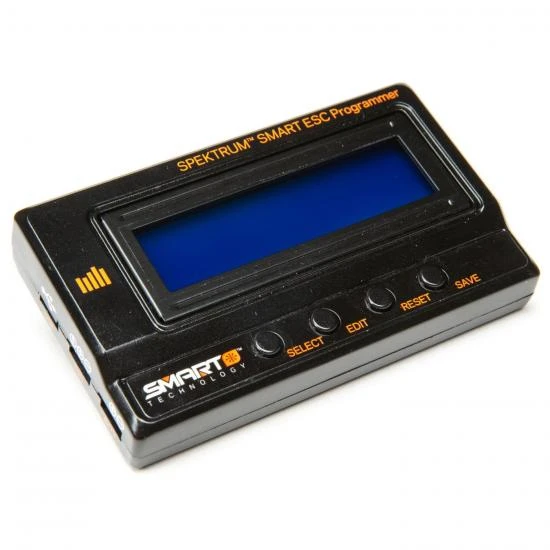

Set, review, adjust and save the operating parameters of your Avian and Firma electronic speed controls using the Spektrum Smart ESC Programmer. When connected to a PC using the included USB cable, the programmer will update Smart ESC firmware and can adjust parameters through the Spektrum SmartLink app. You can also use it to check the balance of your LiPo battery cells.

Download the SmartLink for ESC Updates here: Needed to Complete

• Compatible Spektrum™ Smart ESC
• PC with internet access

What’s in the Box?

• (1) Smart ESC Programmer
• (1) USB Cable
• (1) ESC Cable
• (1) Product Manual

Spektrum™ Smart Technology Video Overview



Avian and Firma Smart ESCs Programming Update Box Specfications:

• Application: : For use with Smart Avian & Firma Electronic Speed Controls
• Height: : 0.7″ (17mm)
• Input Voltage: : 4.5V – 12.6V DC
• Length: : 3.5″ (90mm)
• Type: : Smart ESC Programmer and Updater Tool
• Weight: : 2.3oz (65g)
• Width: : 2″ (51mm)

Spec

• Brand: Spektrum
• Part No: SPMXCA200
• Barcode: 605482429167
• Fitment: Option Part
