Smart Technology — More connected for more confidence and control

Spektrum™ Smart Technology is about offering a higher connection to your hobby. It’s an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model’s electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component’s status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.

Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press “Start.” Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

Product Features

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming:
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Throttle stick programming
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry’s leading ESC manufacturer

• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case
• Heat dissipating design
• Tabs included for a hard mount
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Dual BEC power connectors
• Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine “plug-and-play” simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you’ll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete

• Spektrum™ Aircraft Receiver
• Spektrum Smart Technology LiPo Battery
• Spektrum Transmitter

What’s in the Box?

• (1) Spektrum™ Avian™ Smart ESC
• (1) Spektrum Smart sticker sheet
• (1) Product Manual



Spektrum™ Smart Technology Video Overview



One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.



EC3™/EC5™ Backwards Compatible

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



Smart Technology Battery Data

When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that’s automatically transmitted to your radio in real time. On your transmitter screen you’ll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!



Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



Fast, Powerful M4 Processor

The Avian ESCs’ 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

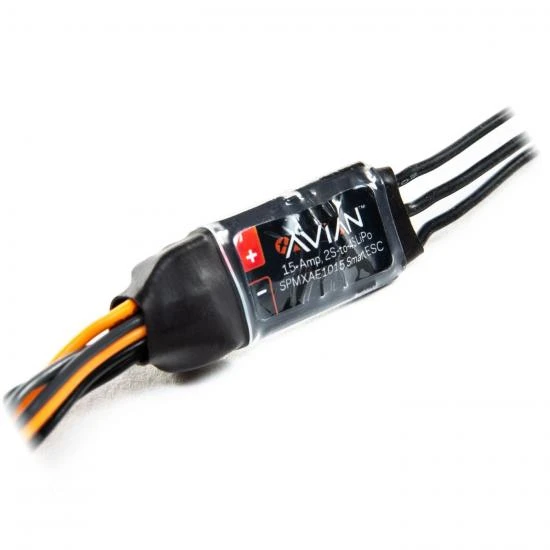

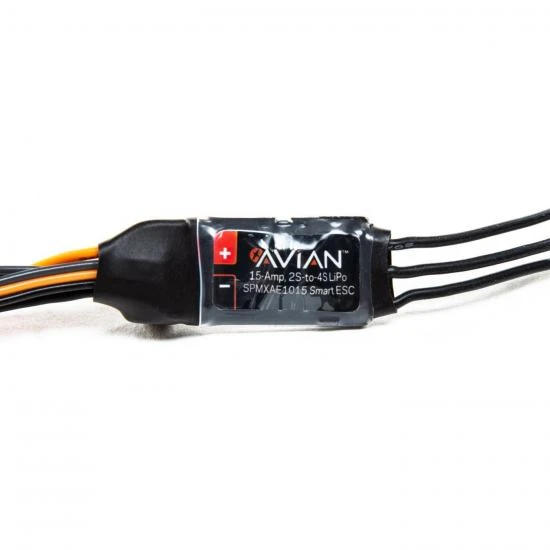

Avian 15 Amp Brushless Smart ESC Specfications:

• Auto Cutoff: : Yes
• BEC: : Yes
• BEC Continous Current: : 3A
• BEC Maximum Burst Current: : 12A
• BEC Type: : Linear
• BEC Voltage: : 5.2V

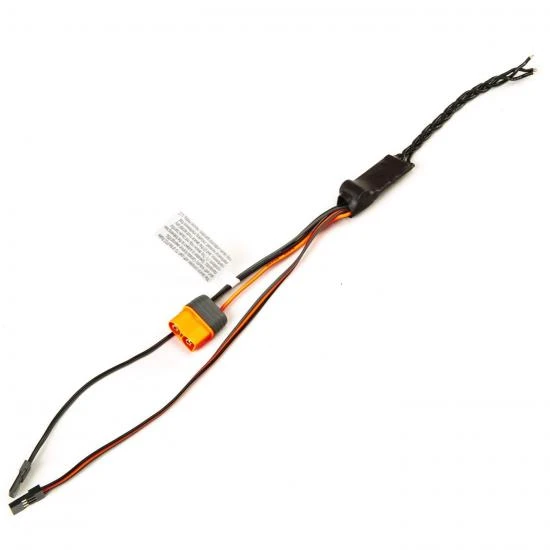

• Battery Connector: : IC3
• Battery Input Lead: : 2.9″ (75mm) 20AWG
• Brakes: : Yes
• Forward: : Yes
• Height: : 0.4″ (11mm)
• Input Voltage: : 2S – 4S LiPo
• Length: : 1.4 (35mm)
• Low-Voltage Cutoff Programmable: : Yes
• Maximum Burst Current: : 25A
• Maximum Continuous Current: : 15A
• Motor Connector: : 2mm Bullet
• Motor Output Lead: : 3.9″ (100mm) 20AWG
• Overload Protection: : Yes (Thermal protection as well)
• Reverse: : No
• Sensored: : No
• Type: : Air
• Weight: : 0.6oz (16g)
• Width: : 0.6″ (16mm)

Spec

• Brand: Spektrum
• Part No: SPMXAE1015
• Barcode: 605482429112
• Fitment: Option Part
