Spektrum A7100 MT/MS Metal Gear HV Wing Servo

Features

• High Voltage (HV) capable (4.8-8.4v input range)
• Specifically designed for thin wing aircraft models and sailplanes
• Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
• Aluminum servo case helps keep operating temperatures low

• Low wear and tightly meshed all metal gear train
• Bearing supported drive train helps maximize smooth operation
• Over Current and Temperature protection
• Operating Frequency: 200hz to 333hz

A7100 Mid Torque Mid Speed HV MG Thin Wing Servo

The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.

A7100 MT/MS Metal Gear HV Wing Servo Specfications:

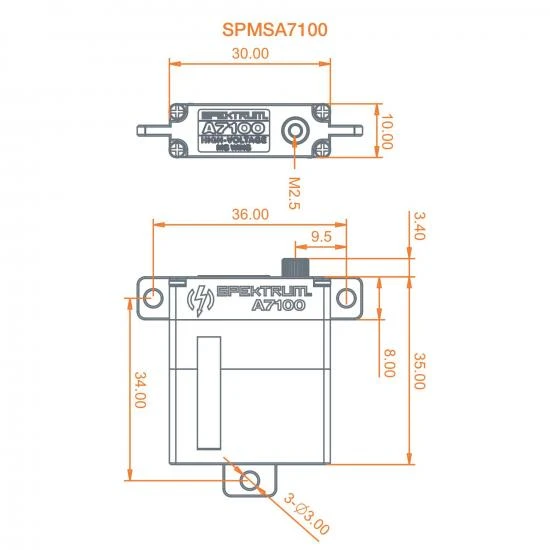

• Product Width: 0.39″ (10 mm)
• Motor Type: Brushed
• Deadband: <1µs
• Input Voltage: 4.8V-8.4V
• Product Height: 1.38″ (35 mm)
• Servo Type: Digital
• Product Length: 1.18″ (30 mm)
• Overload Protection: No
• Product Weight: 1.0 oz (28g)
• Spline Count: 25 – Tooth
• Bearing: Single BB
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Maximum Servo Speed: 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V
• Maximum Servo Torque: 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
• Programmable: No
• Servo Size Category: Thin
• Max Servo Torque: 100-199 oz-in

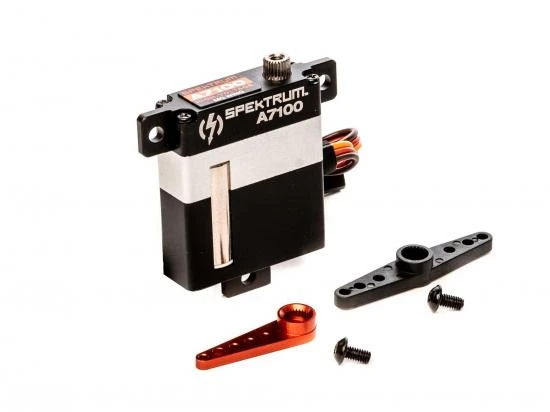

In The Box

• (1) A7100 Wing Servo
• (1) Double-sided Plastic Servo Arm
• (1) One Inch Red Anodized Aluminum Servo Arm
