Overview

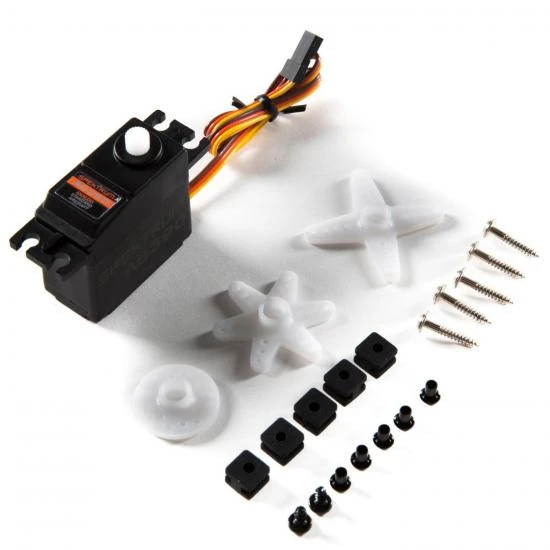

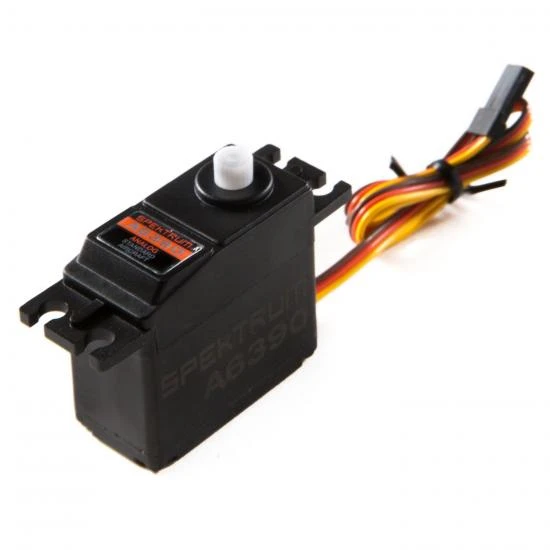

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
A6390 Mid-Torque Mid-Speed Analog Standard Servo ** CLEARANCE ** Specfications:
- Programmable: No
- Servo Size Category: Standard
- Maximum Servo Torque: 48.6 oz-in (3.5 kg-cm) @ 4.8V, 66.7 oz-in (4.8 kg-cm) @ 6.0V
- Servo Operating Voltage: 4.8 – 6.0V
- Connector Type: Universal
- Product Length: 1.52″ (38.6mm)
- Rotation Range: 120 deg
- Bearing: Single
- Bushing Or Bearing: Bearing
- Gear Type: Composite
- Maximum Servo Speed: 0.100-0.149 sec
- Wire Gauge: 22 AWG
- Application: Trainer airplane
- Max Servo Torque: 40-99 oz-in
- Product Weight: 1.3oz (37g)
- Connector Wire Length: 12″ (304mm)
- Product Width: 0.74″ (18.8mm)
- Product Height: 1.36″ (34.6mm)
- Servo Type: Analog
Spec
- Brand: Spektrum
- Part No: SPMSA6390
- Barcode: 605482292754
- Fitment: Option Part
