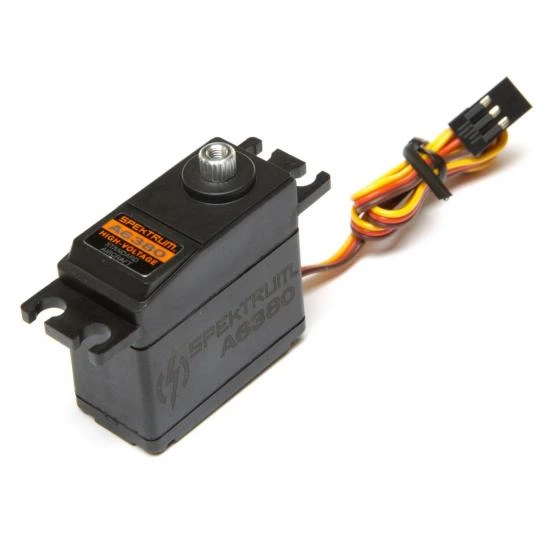

Overview

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

A6380 High Torque High Speed Plastic HV Servo Specfications:

• Application: : Aircraft
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Universal
• Connector Wire Gauge: : 24 AWG
• Connector Wire Length: : 11.8 in (299.7mm)
• Gear Type: : Metal
• Height: : 1.47 in (37mm)
• Length: : 1.52 in (39mm)
• Motor Type: : Coreless
• Servo Operating Voltage: : 6.0 – 8.4V (HV)
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 8.4V
• Torque: : 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V
• Type: : Digital
• Weight: : 1.5 oz (42.5 g)
• Width: : 0.74 in (19mm)

Spec

• Brand: Spektrum
• Part No: SPMSA6380
• Barcode: 605482127711
• Fitment: Option Part
