Key Features

• High Voltage (HV) capable (6.0-8.4v input range)
• Outstanding torque and speed in a standard servo size (270 oz-in and .10 sec/60° @8.4v)
• Durable and long lasting brushless motor
• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Aluminum center servo case helps keep operating temperatures low
• Soft start helps prevent component and airframe damage during un-intentional initializations
• Over Current and Temperature protection
• Helpful initialization start tone lets pilot know when the servo is ready
• Integrated servo failsafe holds last known position if signal is lost and power is maintained
• Frequency : 50-400hz

Overview

Spektrum™ high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software combine with powerful brushless motor technology to offer ultra-smooth performance more efficiently than servos with conventional motors. The aluminum center section allows any heat within the servo to dissipate rapidly while high-strength metal gears and high-impact polymer case components deliver a precision instrument that’s hassle-free.

The Spektrum A6320 uses this solid foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature protection offers. It’s a brilliant feature combination that makes this servo an outstanding choice for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.

*Torque and Transit @ 8.4V

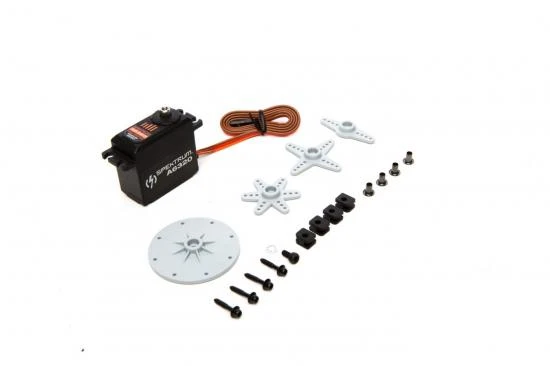

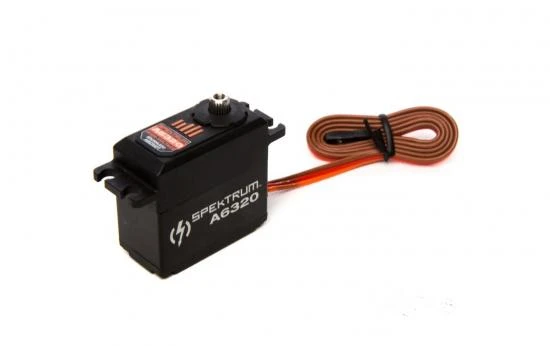

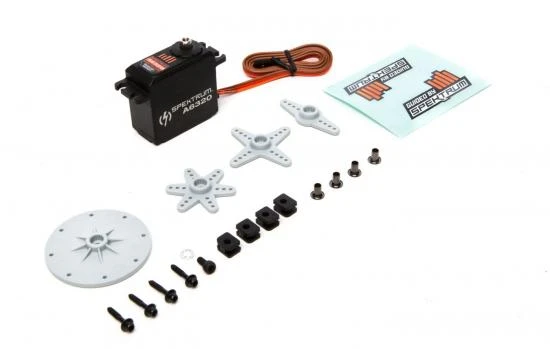

Spektrum A6320 Ultra Torque High Speed Metal BL HV Servo Specfications:

• Bearing: : Dual
• Gear Type: : Metal
• Height: : 40.0mm (1.57in),1.57″ (40mm)
• Length: : 37.8mm (1.49in),1.49″ (38mm)
• Motor Type: : Brushless
• Programmable: : No
• Servo Operating Voltage: : 6.0 – 8.4V (HV)
• Servo Size Category: : Standard
• Servo Type: : Digital
• Speed: : 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
• Torque: : 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
• Weight: : 2.2 oz (62 g),2.2 oz (62 g)
• Width: : 20.0mm (0.79in),0.79″ (20mm)

Spec

• Brand: Spektrum
• Part No: SPMSA6320
• Barcode: 0605482831892
• Max Voltage: 7.4v+ (LiPo)
• Gear Material: Metal
• Fitment: Option Part
