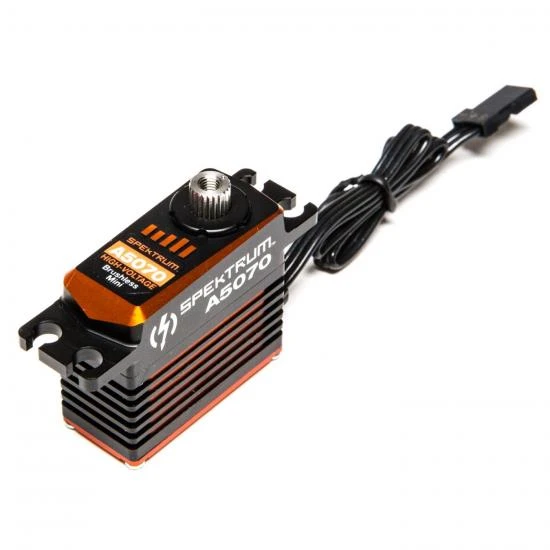

Spektrum A5070 High Torque High Speed Mini MG HV Servo

Key Features

• High torque both on HV and non-HV applications
• Allows BECs of adjustable BEC ESCs to be set higher to increase performance
• Acts as a heat sink for the motor and ESC
• Low deadband, high resolution, with impressive holding torque for unmatched performance
• Durable high performance finish

Overview

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.

The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.



A5070 High Torque High Speed Mini MG HV Servo Specfications:

• Application: : Airplane or Heli
• Bearing: : Dual
• Bushing Or Bearing: : Bearing
• Connector Type: : Z-Connector
• Connector Wire Gauge: : 22 AWG
• Connector Wire Length: : 11.8 in (300mm)
• Control System: : PWM
• Deadband: : 2µs
• Gear Material: : Metal
• Gear Type: : Metal
• Height: : 1.16 in (29.4mm)
• Input Voltage: : 6.0V to 8.4V
• Length: : 1.32 in (33.5mm)
• Motor Type: : Brushless
• Overload Protection: : Yes
• Programmable: : No
• Rotation Range: : 120º
• Servo Type: : Digital
• Speed: : 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
• Spline Count: : 23 Teeth
• Torque: : 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
• Type: : High-Torque High-Speed Metal Gear HV Digital Servo
• Weight: : 1.4 oz (40g)
• Width: : 0.59 in (14.9mm)
