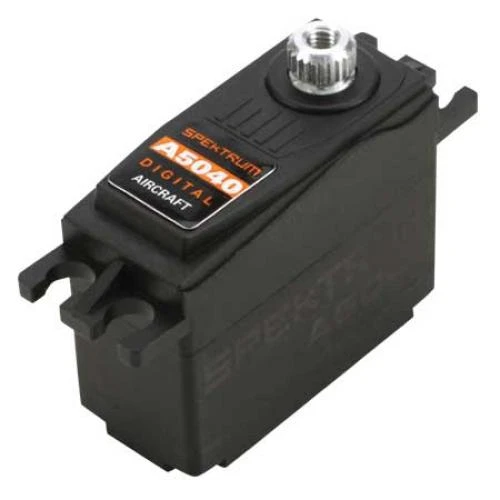

Spektrum A5040 Mini Digital Aircraft Metal Gear Servo

The A5040s extremely tough metal gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft. Aerobatic and 3D aircraft that demand performance need the precision of digital accuracy. The low deadband technology means that you’ll enjoy reliable accuracy and precision.

This mini-class servo is durable enough for either glow or electric power applications. Dual ball-bearing support means there’s less resistance to the high output of the high-speed coreless motor. In all these features mean you can expect great performance and long life.

Spektrum A5040 Mini Digital Aircraft Metal Gear Servo Features:

• Digital precision and power
• Low deadband accuracy
• Dual ball bearing support
• Tough Metal Gears
• Coreless Motor

Spektrum A5040 Mini Digital Aircraft Metal Gear Servo Specifications:

• Application: 25 – 32 size airplanes
• Bearing: Dual
• Bushing Or Bearing: Bearing
• Gear Type: Metal
• Height: 1.1 inch (27.4mm)
• Length: 1.3 inch (32.8mm)
• Motor Type: Coreless
• Servo Type: Digital
• Servo Voltage: 4.8 – 6.0V
• Size Category: Minis and Micros
• Speed: 0.12 sec/60º @ 4.8V; 0.10 sec/60º @ 6.0V
• Speed (at 4.8V): .10 – .14 sec
• Torque: 50 oz-in (3.6 kg-cm) @ 4.8V; 66 oz-in (4.8 kg-cm) @ 6.0V
• Torque (at 4.8V): 40 – 99 oz-in
• Weight: 0.7 oz (21.6 g)
• Width: 0.58 inch (14.7mm)
