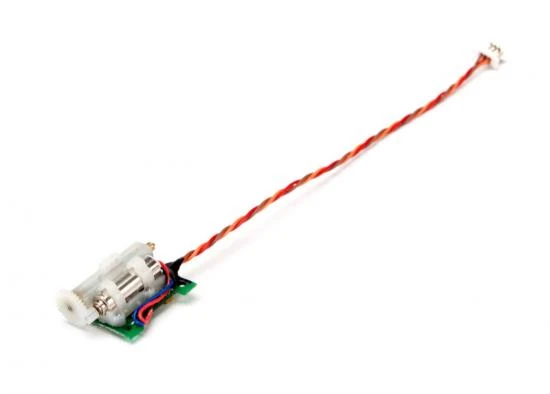

Designed to work in conjunction with Spektrum’s AR6400 & AR6410 series of Ultra-Micro Receiver, this linear servo plugs into an open port to expand the installation options on your Ultra-Micro aircraft. Each servo comes with a linear servo reverser (SPM6825).

Spektrum 1.8gm Linear Servo Features:

• Weighing only 1.8 grams, this servo is incredibly lightweight
• DSM2 technology- can be used with AR6400 and AR6410 series receivers
• Compact footprint makes it extra-versatile in Ultra-Micro applications
• 9.1mm servo throw allows for aerobatic flight performance

Spektrum 1.8gm Linear Servo Specifications:

• Application: Ultra-Micro Aircraft
• Connector Type: JST-SHR
• Gear Type: Plastic
• Height: 0.33 in (8.2mm)
• Length: 0.6 in (16.0 mm)
• Servo Type: Analog
• Servo Voltage: 3.2 – 4.2V
• Size Category: Minis and Micros
• Speed (at 4.8V): .10 – .14 sec
• Torque: 2.8 oz
• Torque (at 4.8V): Less than 20 oz-in
• Weight: 0.06 oz (1.8 g)
• Width: 0.59 in (15.0 mm)

Spec

• Brand: Spektrum
• Part No: SPMSA2005
• Barcode: 605482063057
• Fitment: Standard Part
